Ti64 grade 5 titanium Maxim-Swindell Chassis Bolt Kit

Home > Sprint/Midget/Micro > Chassis Kits and Misc. Suspension > Sprint Chassis & Suspension Kits >

Maxim-Swindell Chassis Bolt Kit

Our Price: $1,295.99 ea

Availability: Usually Ships in 24 Hours
Product Code: 227

Qty:

The following items are included with this product:

6 of 3/8"-16 x 1" Hex Head Bolt
4 of 3/8"-16 x 1-1/4" Hex Head Bolt
3 of 1/4"-28 x 1/2" Hex Head Bolt
4 of 1/4"-28 x 3/4" Hex Head Bolt
1 of 1/4"-28 x 1-1/2" Hex Head Bolt
2 of 1/4"-28 x 1-3/4" Hex Head Bolt
6 of 5/16"-24 x 1-1/2" Hex Head Bolt
4 of 3/8"-24 x 3/4" Hex Head Bolt
4 of 3/8"-24 x 1" Hex Head Bolt
2 of 3/8"-24 x 1-3/4" Hex Head Bolt with 1/2" of Thread
4 of 3/8"-24 x 2-1/2" Hex Head Bolt
2 of 1/2"-20 x 3-1/2" Hex Head Bolt
1 of 3/8"-24 x 1-1/8" Hex Head Bolt
24 of #10-32 Fine Thread, Steel Jet Nut
19 of 1/4"-28 Fine Thread, Jet Nut
9 of 5/16"-24 Fine Thread, Jet Nut
16 of 3/8"-24 Fine Thread, Jet Nut
2 of 3/8"-16 x 2-3/4" Hex Head Bolt
1 of 5/16"-24 x 2-1/4" Hex Head Bolt
2 of 3/8"-24 x 3-3/4" Hex Head Bolt
16 of 5/16"-18 x 3/4" Parallel Socket Head Screw
4 of Stop Bolt, 7/16"-20 x 2"
1 of 1/2" x 1.3" Clevis Pin, 1.05" Effective Length
1 of Lower Rear Shock Mount 1/2"-20 ONS, 1.1" chassis-side
1 of Drag Link / Tie Rod 1/2"-20 ONS, 2.525" Overall
2 of Shock Mount 1/2"-20 ONS, 2.75" Through-Bolt
2 of Shock Mount 1/2"-20 ONS, 7/8" Thread Into Chassis
24 of 1/4"-28 x 3/4" Button-Head Socket Screw
1 of 1/2" Rue Clip
5 of 1/2" AN Thin Washer, Steel
26 of 3/8" AN Thin Washer, Steel
8 of 5/16" AN Thin Washer, Steel
8 of 1/4" AN Thin Washer, Steel
2 of 1/2"-20 x 2" Countersunk Socket Screw, Reduced Head
1 of 1/4"-20 x 5/8" Parallel Socket Head Screw
6 of Torque Tube Stud, 3/8" -16-24 x 2"
4 of 3/8"-24 x 1-3/4" Hex Head Bolt
7 of 1/4"-20 x 1/2" Button-Head Socket Screw
1 of 3/8"-24 x 1-5/8" Hex Head Bolt
12 of #10-32 x 1-1/2" Hex Head Bolt
4 of 3/8"-24 x 1-7/8" Hex Head Bolt
4 of ONS 1/2"-20 with 5/8” Threaded Side
8 of #10-32 x 1/2" Button Head Socket Screw
2 of 3/8"-24 x 1-1/2" Hex Head Bolt
2 of 5/16"-24 x 2" Button-Head Socket Screw
4 of #10-32 x 3/4" Hex Head Bolt
4 of 7/16"-20 Ti Hex Jam Nut, Reduced Wrench
2 of 1/2"-20 x 1-1/2" Hex Head Bolt (11/16" Wrench)
1 of 1/2"-20 x 1-3/4" Hex Head Bolt (11/16" Wrench)
7 of 1/2"-20 x 2-3/4" Hex Head Bolt (11/16" Wrench)
25 of 1/2"-20 Hex Nylon Insert Lock Nut, 1/2 Height, Reduced Wrench (11/16")
1 of Large Chassis Kit Box, Tuff Tainer 5007
3 of 1/2"-20 x 1-1/4" Hex Head Bolt (11/16" Wrench)

Description

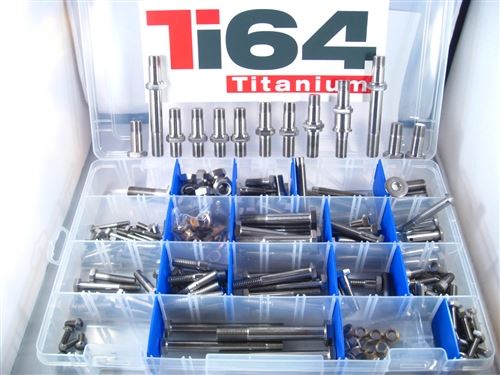

Sammy and Kevin will run this exact kit for the 2012 WoO season. We sweat every detail in its construction. Itï¿½s Ti64ï¿½s most complete Maxim Chassis bolt kit containing 192 Ti pieces including (25) ï¿½ï¿½ Ti locknuts.

Item	Application	Part Description	Qty	Ti64 Part #
1	Lower Front Shock ONS	1/2-20x2.25 ONS	2	5114
2	Upper Front Shock ONS	1/2-20x4.125 ONS	2	5113
3	Lower RR Shock ONS	1/2-20x3 ONS	1	5110
4	Lower LR Shock ONS	1/2-20x2.625 hex	1	5111
5	Steering Wheel	1/4-28x.5 hex	3	1277
6	Steering Mount Clamp	3/8-24x1 hex	2	1309
7	Steering Top Mount	1/4-28x1.75 hex	2	1282
8	Lee Power Steering	5/16-18x.75 socket	12	3857
9	Pittman Arm Pinch	3/8-24x1.875 hex	1	6129
10	Pittman Arm ONS	1/2-20x2 ONS	1	6160
11	Lower Steering Drag Link ONS	1/2-20x2 ONS	3	6160
12	RF Steering Arm	1/2-20x1.5 hex	2	1345
13	LF Steering Arm	1/2-20x2 countersunk	2	6029
14	Front Axle Radius Rods	1/2-20x1.25 hex	3	1344
15	Radius Rods Rear Top Shock	1/2-20x2.625 hex	7	6169
16	Birdcage Radius Rod	1/2-20x3.5 hex	2	1351
17	Jacobs Ladder Straps	3/8-24x1.75 hex	2	1312
18	Jacobs Ladder Frame	3/8-24x3.75 hex	2	3719
19	Jacobs Ladder Pin	1/2x1.3 clevis pin	1	5104
20	Torsion Arm Pinch	3/8-24x1.75 hex	4	6069
21	Torsion Stop Pinch Rear	3/8-24x1.5 hex	2	6172
22	Torsion Stop Pinch Front	3/8-24x1.875 hex	2	6129
23	Torsion Stop Adjuster	7/16-20x2 custom	4	5100
24	Front Motor Plate	3/8-24x1 hex	2	1309
25	Rear Motor Bottom	3/8-16x1.25 hex	4	1107
26	Rear Motor Top	3/8-16x2.75 hex	2	3689
27	Rear Motor Plate to Frame	3/8-24x2.375 hex	4	1314
28	Torque Ball Housing	3/8-16x1 hex	6	1106
29	Torque Tube Stud	3/8x2 custom	6	6042
30	Bell Crank	1/4-28x1.5 hex	1	1281
31	Brake Pedal Pivot	3/8-24x1.812 hex	1	6129
32	Brake Pedal Top	5/16-24x2.25 hex	1	3710
33	Master Cylinder	5/16-24x2 Button	2	6174
34	RR and Inboard Rotor	1/4-28x.75 Button	12	5202
35	Wing Cylinder to Frame	3/8-24x1.125 hex	1	1532
36	Wing Cylinder to Tree	3/8-24x1.625 hex	1	6086
37	Rear Wing Tree	3/8-24x.75 hex	4	1308
38	Front Wing	1/4-28x.75 hex	4	1278
39	Front Wing Rear to Frame	5/16-24x1.5 hex	2	1296
40	Front and Top Wing Post	5/16-24x1.5 hex	4	1296
41	Floor Pan	10-32x.5 Button	8	6163
42	Floor Pan to Motor Plate	10-32x.75 hex	4	6175
43	Fuel Tank Top Plate	1/4-28x3/4 Button	12	5202
44	Fuel Tank Mount	5/16-18x.75 socket	4	3857
45	Fuel Pump Clamp,Shifter, Wing Valve	1/4-20x.5 Button	7	6080
46	Lee Steering Pump Adapter	1/4-20x.625 socket	1	6033
47	Panhard Clamp	1/2-20x1.75 hex	1	1346
48	Bumper and Nerf	#10-32 x 1.5ï¿½ hex	12	6088
49	locknut	#10-32 jet	24	1541
50	locknut	1/4"-28 jet	19	1542
51	locknut	5/16"-24 jet	9	1543
52	locknut	3/8"-24 jet	16	1544
53	Ti locknut	1/2"-20 Ti nylock	25	5127
54	Washers	1/4" thin washer	8	6005
55	Washers	5/16" thin washer	8	6004
56	Washers	3/8" thin washer	26	6002
57	Washers	1/2" thin washer	5	6000
58	Rue Clip	1/2"	1	5435
